Products Product Details

Immersion Coil & Shell & Tube Type Heat Exchanger

Spec:
Scope:
Availability: 2021 - 05 - 12
Describe:
Explain:
Immersion Coil & Shell & Tube Type Heat ExchangerThe new type is different from the traditional welded heat exchanger. PreciseHeaterprovides a special joint design (one piece without welded line) with excellent chemical resistance of PFA Tube, the application of pressure and corrosion resistance has a very excellent performance.In addition, because of PFA tube excellent flatness and ultra-low metal ion precipitation characteristics, it is not easy to attach dirt when used, it can also maintain the purity of the liquid for a long time to extend the service life.It has excellent properties are widely used in high temperature, high purity, high corrosive environment, such as the semiconductor industry, panel industry, PCB and steel industry...etc.There are several types:Free TypeModul...
  • Features

Immersion Coil & Shell & Tube Type Heat Exchanger


Immersion Coil & Shell & Tube Type Heat Exchanger

Immersion Coil & Shell & Tube Type Heat Exchanger

Immersion Coil & Shell & Tube Type Heat Exchanger


The new type is different from the traditional welded heat exchanger. PreciseHeaterprovides a special joint design (one piece without welded line) with excellent chemical resistance of PFA Tube, the application of pressure and corrosion resistance has a very excellent performance.

In addition, because of PFA tube excellent flatness and ultra-low metal ion precipitation characteristics, it is not easy to attach dirt when used, it can also maintain the purity of the liquid for a long time to extend the service life.

It has excellent properties are widely used in high temperature, high purity, high corrosive environment, such as the semiconductor industry, panel industry, PCB and steel industry...etc.


There are several types:

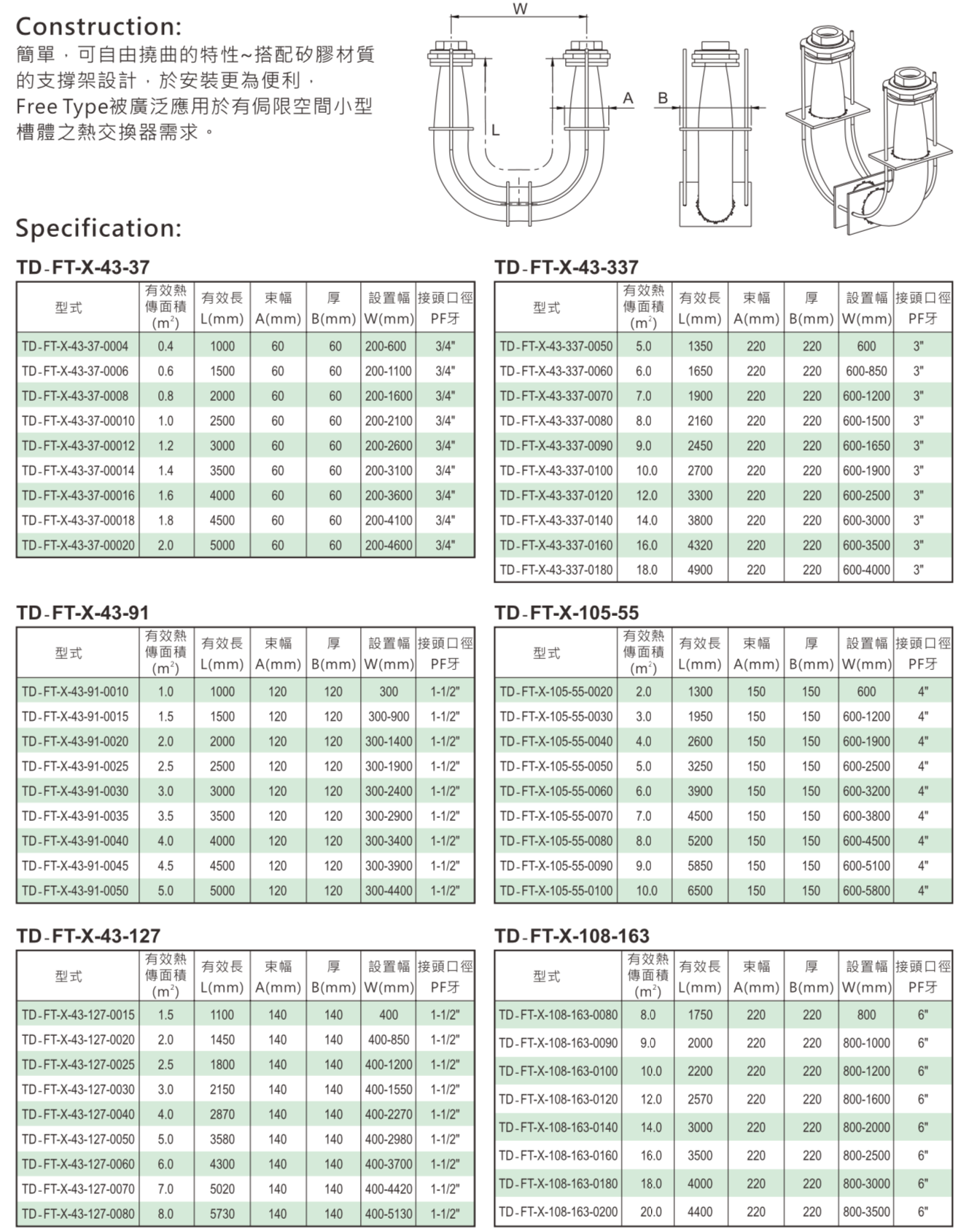

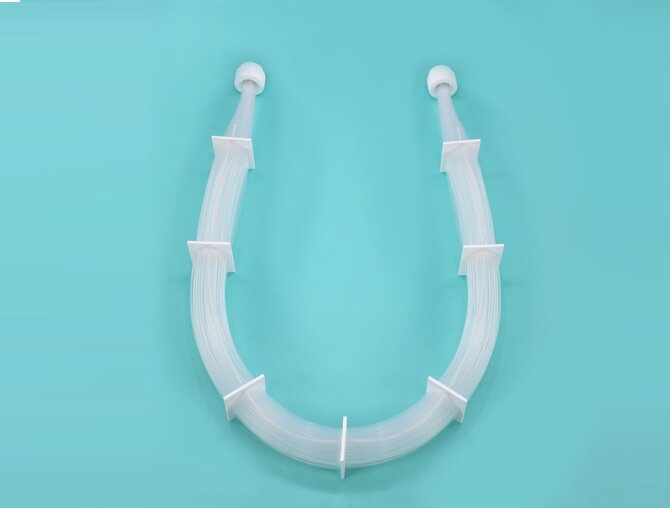

  1. Free Type

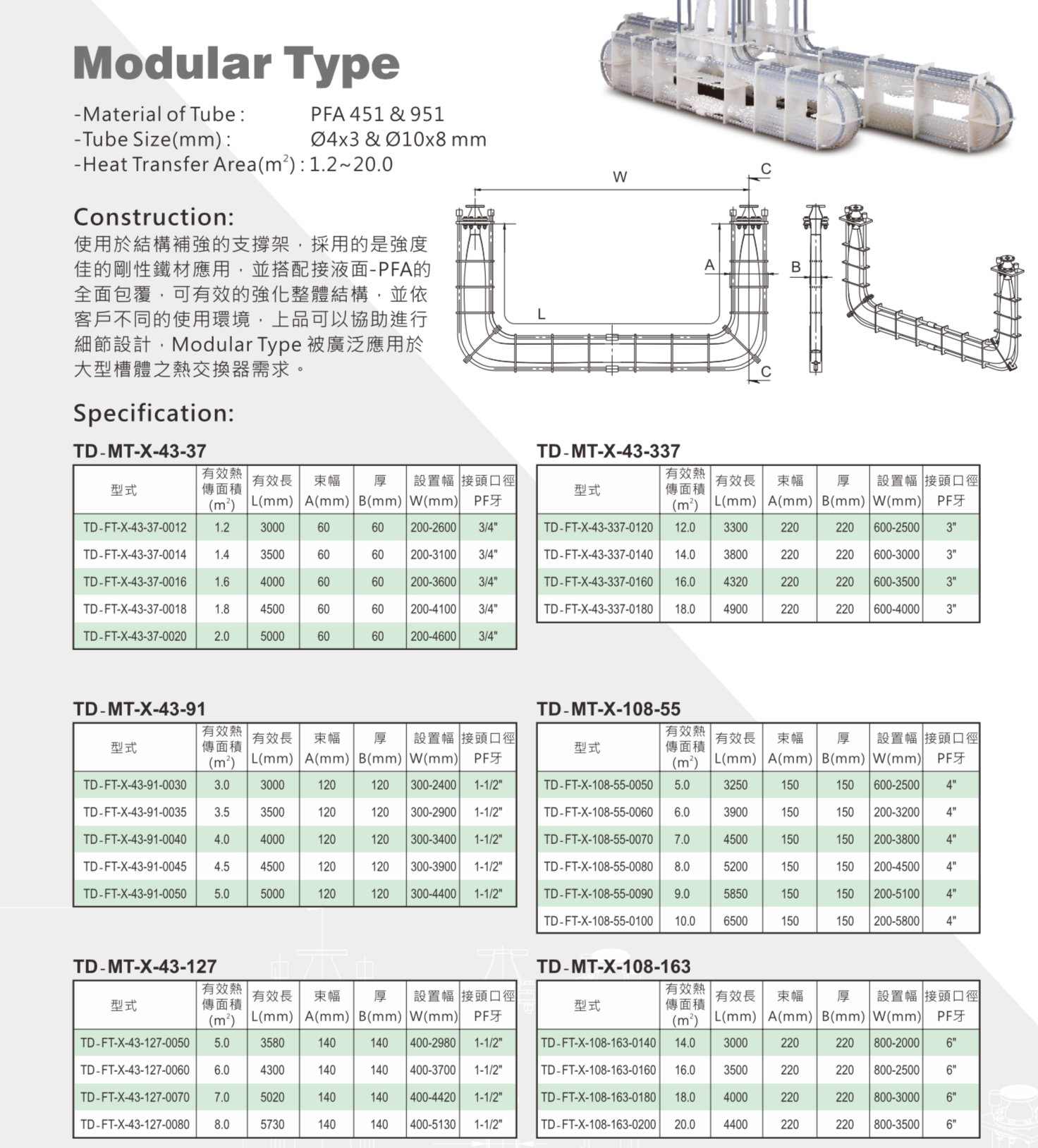

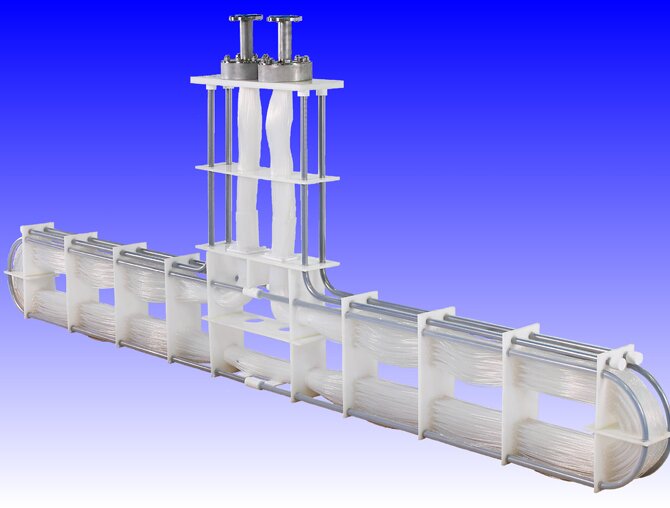

  2. Modular Type

  3. Shell & Tube Type – Horizontal

  4. Shell & Tube Type – Vertical

  5. Coil type


Immersion Coil & Shell & Tube Type Heat Exchanger

Immersion Coil & Shell & Tube Type Heat Exchanger

Immersion Coil & Shell & Tube Type Heat Exchanger
