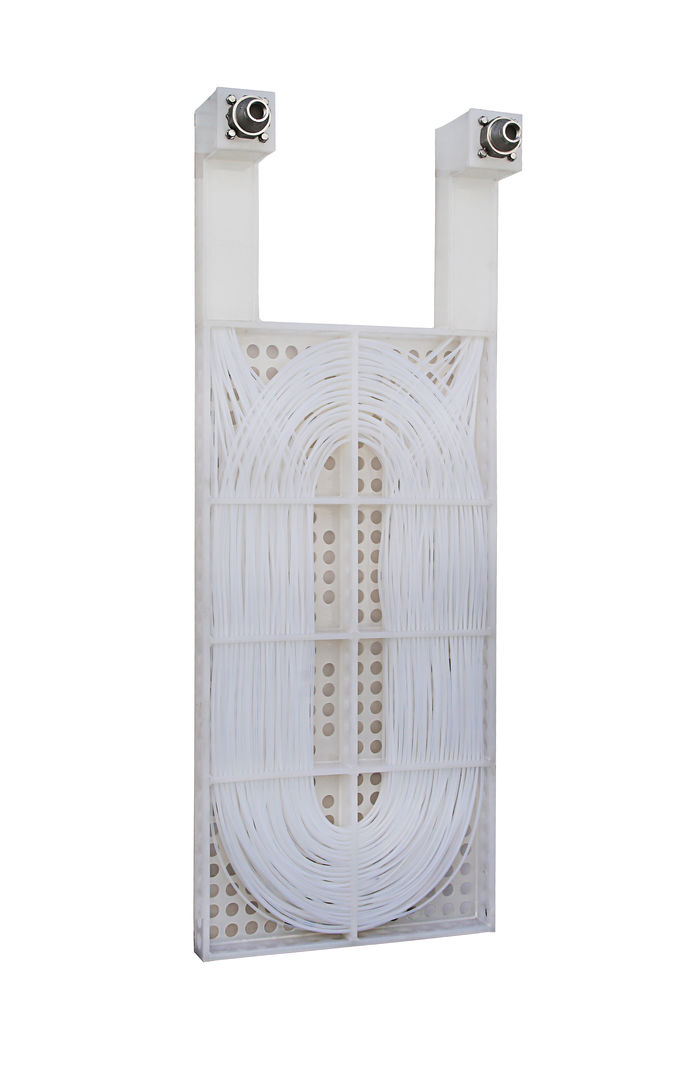

Industrial PTFE Immersion Coils Heat Exchanger

Spec:
Scope:
Availability: 2021 - 05 - 12
Describe:
Explain:
Industrial PTFE Immersion Coils Heat Exchanger:Teflon(Fluorpolymer) Heating and cooling coilsExchange areaSq.FtConnectionsInchLengthIn./mmWidthIn./mmThicknessIn./mmModel No.5.53/4 FNPT11.5(292)11.5(292)2(51)XC-12-12113/4 FNPT15.5(394)15.5(394)2(51)XC-16-1616.53/4 FNPT17.5(445)17.5(445)2.36(60)XC-18-18223/4 FNPT19.7(500)15.7(400)2.36(60)XC-20-1627.53/4 FNPT19.7(500)19.7(500)2.36(60)XC-20-20333/4 FNPT23.5(597)23.5(597)2.36(60)XC-24-2438.53/4 FNPT27.5(700)23.5(597)2.36(60)XC-28-24443/4 FNPT27.5(700)27.5(700)2.76(70)XC-28-2849.53/4 FNPT31.5(800)31.5(800)2.76(70)XC-32-32551 FNPT33.9(860)33.9(860)2.76(70)XC-34-3460.51 FNPT35.5(900)31.5(800)2.76(70)XC-36-32661 FNPT35.5(900)33.9(860)2.76(70)XC-36-3471.51 FNPT35.5(900)35.5(900)2.76(70)XC-36-36771 FNPT39.5(100...
  • Features

Industrial PTFE Immersion Coils Heat Exchanger:


Industrial PTFE Immersion Coils Heat ExchangerIndustrial PTFE Immersion Coils Heat Exchanger

Industrial PTFE Immersion Coils Heat Exchanger

Teflon(Fluorpolymer) Heating and cooling coils

Exchange area

Sq.Ft

Connections

Inch

Length

In./mm

Width

In./mm

Thickness

In./mm

Model No.

5.5

3/4 FNPT

11.5(292)

11.5(292)

2(51)

XC-12-12

11

3/4 FNPT

15.5(394)

15.5(394)

2(51)

XC-16-16

16.5

3/4 FNPT

17.5(445)

17.5(445)

2.36(60)

XC-18-18

22

3/4 FNPT

19.7(500)

15.7(400)

2.36(60)

XC-20-16

27.5

3/4 FNPT

19.7(500)

19.7(500)

2.36(60)

XC-20-20

33

3/4 FNPT

23.5(597)

23.5(597)

2.36(60)

XC-24-24

38.5

3/4 FNPT

27.5(700)

23.5(597)

2.36(60)

XC-28-24

44

3/4 FNPT

27.5(700)

27.5(700)

2.76(70)

XC-28-28

49.5

3/4 FNPT

31.5(800)

31.5(800)

2.76(70)

XC-32-32

55

1 FNPT

33.9(860)

33.9(860)

2.76(70)

XC-34-34

60.5

1 FNPT

35.5(900)

31.5(800)

2.76(70)

XC-36-32

66

1 FNPT

35.5(900)

33.9(860)

2.76(70)

XC-36-34

71.5

1 FNPT

35.5(900)

35.5(900)

2.76(70)

XC-36-36

77

1 FNPT

39.5(1000)

33.9(860)

3.15(80)

XC-40-34

83.5

1 FNPT

39.5(1000)

35.5(900)

3.15(80)

XC-40-36

89

1 FNPT

39.5(1000)

39.5(1000)

3.15(80)

XC-40-40

94.5

1 FNPT

39.5(1000)

39.5(1000)

3.15(80)

XC-41-41

99

1 FNPT

43.3(1100)

39.5(1000)

3.15(80)

XC-43-40

104

1-1/2 FNPT

43.3(1100)

39.5(1000)

3.54(90)

XC-44-40

110

1-1/2 FNPT

45.3(1150)

39.5(1000)

3.54(90)

XC-45-40

115

1-1/2 FNPT

47.2(1200)

39.5(1000)

3.54(90)

XC-47-40

120

1-1/2 FNPT

47.2(1200)

39.5(1000)

3.54(90)

XC-48-41



Features and Benefits


  • SUPERIOR CHEMICAL RESISTANCE: For heating or cooling of most aqueous acid and alkaline solutions. Check solution guide or consult with your chemical supplier for proper sheath material selection.

  • RUGGED CONSTRUCTION:
    •  All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction.
    •  Heavy duty CPVC mounting bracket.
    •  1/8-inch thick perforated guard helps protect the coil from damage.

  • OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop.  Larger coils constructed of ½-inch (13mm) tubing, smaller coils have ¼-inch (7mm) tubing.

  • LEAK-FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation.

  • PRESSURE RATING:
    •  Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service.
    •  PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI.
    •  10 PSI minimum steam pressure required for operation.
    •  Consult factory regarding pressure reduced applications.

  • NON-CONDUCTIVE: Eliminates stray currents in the tank.

  • SIZES: 5.5 ft2 to 120 ft2 of exchange area standard.

  • NOTE: Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.


• Anti-floatation brackets.
• Special sizes.
• Special manifold configurations.

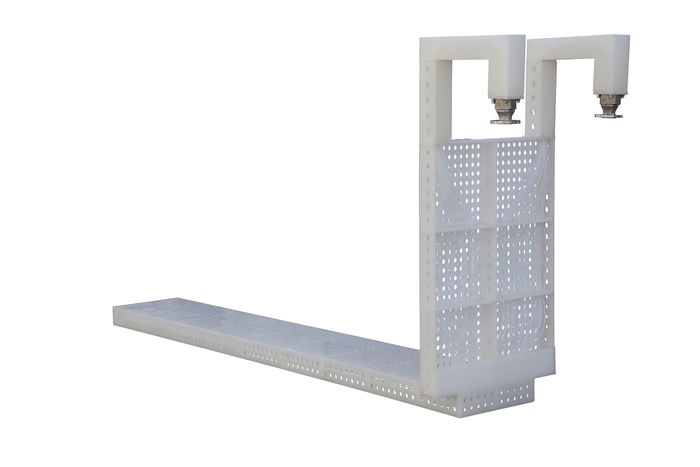

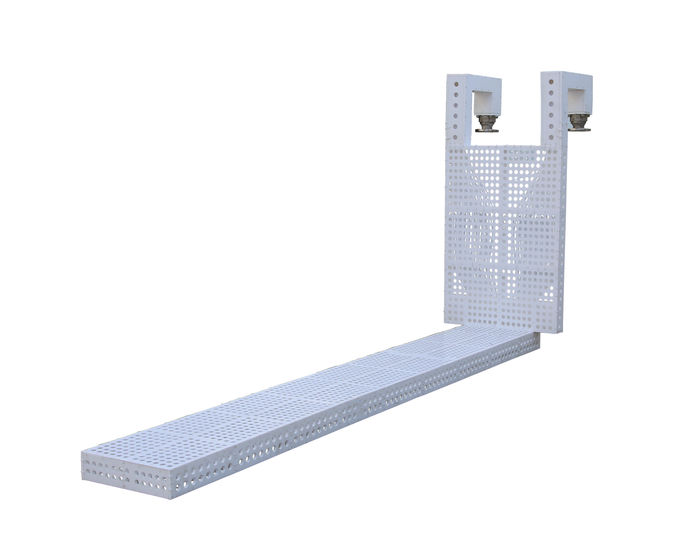

• L-shaped configurations for bottom heat applications.
• Dual coils for both heating and cooling.
