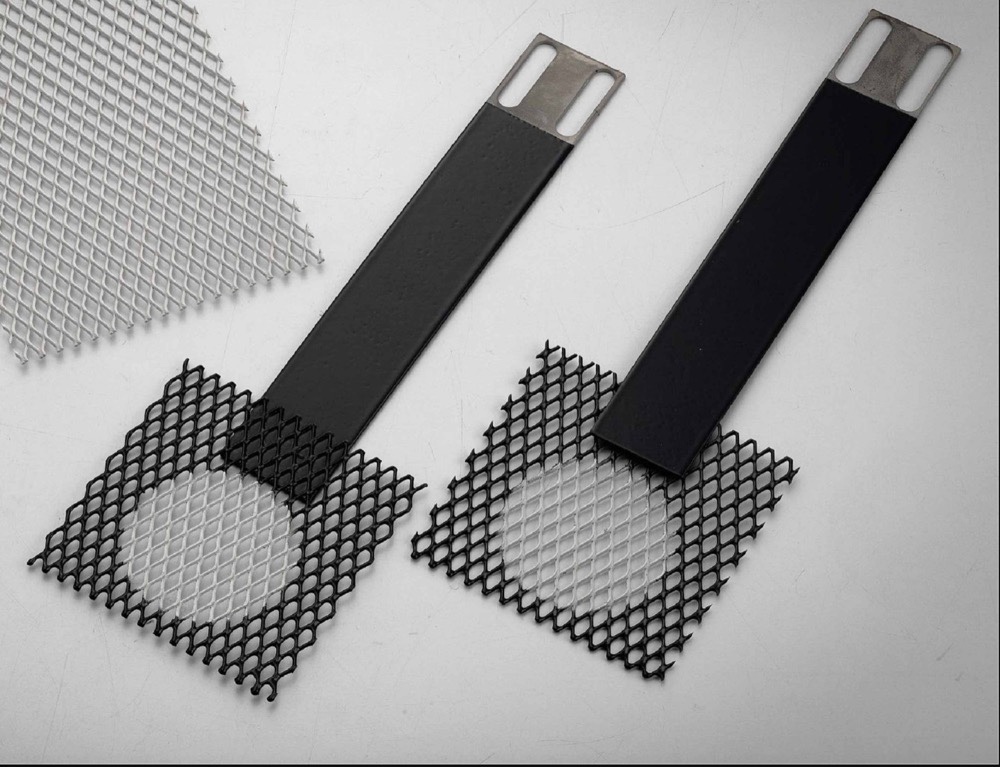

Iridium-Tantalum Titanium Anodes

Spec:

Scope:

Availability: 2025 - 05 - 23

Describe:

Explain:

Iridium-Tantalum Titanium Anodes MaterialGrade 1 & Grade 2 TitaniumTechnologySand Blasting, acid washing and Brush CoatingCoatingPlatinumCoating Thickness3-12 micronDimension/ShapeCustom dimension,shape and Coating thickness are availableWorking PrincipleWater ElectrolysisThe reaction on the anode and cathode of water electroplysisH2O=H2↑+2O2-Cathode:2H2O+2e=H2↑+2OH-Anode:2OH--2e=1/2O2+H2OWorking Parameter①Current density max 2000A/M2②Temeprature≤60℃Features①High anti-corrsion Property②Lasting working life③Keep the operating voltage stably④High Current Efficiency⑤High catalytic PropertyRemarks①Titanium anode also be named MMO anode, DSA & Insoluble anode② Cathode can be provided Because of a very flexible production facility, we are able to manufacture anodes of all types...

Catalog Download

Inquiry

Features

Iridium-Tantalum Titanium Anodes

Material	Grade 1 & Grade 2 Titanium
Technology	Sand Blasting, acid washing and Brush Coating
Coating	Platinum
Coating Thickness	3-12 micron
Dimension/Shape	Custom dimension,shape and Coating thickness are available
Working Principle	Water Electrolysis
	The reaction on the anode and cathode of water electroplysis
	H2O=H2↑+2O2-
	Cathode:2H2O+2e=H2↑+2OH-
	Anode:2OH--2e=1/2O2+H2O
Working Parameter	①Current density max 2000A/M2
Working Parameter	②Temeprature≤60℃
Features	①High anti-corrsion Property
	②Lasting working life
	③Keep the operating voltage stably
	④High Current Efficiency
	⑤High catalytic Property
Remarks	①Titanium anode also be named MMO anode, DSA & Insoluble anode
Remarks	② Cathode can be provided

Because of a very flexible production facility, we are able to manufacture anodes of all types: sheet, plate, mesh, wire, rod, tubular or combinations and/or assemblies of these materials. Their size and number vary from several cm2 to 2 m2 and from 1 to 10,000 pieces. The process in which the anodes are used determines size, shape and coating specification of an anode.

Important parameters determining the anode design are:

◆ The electrochemical cell or installation wherein the anodes are used

◆ The process conditions, such as electrolyte composition, temperature, current density, design life, etc.

◆ Mechanical load of the anode

◆ Capacity of electrical conductivity of the base material.

All anodes are produced according to customer specifications. When these specifications are not yet completely determined, our engineers are pleased to use their knowledge and experience to finalise the design together with the customer.

Main application areas	Anodes and coatings	Details
Cathodic Protection	KERAMOX® Titanium anode Platinised Titanium Anodes based on Niobium or Tantalum	All round applicable At high current densities, for example in sea water High voltages or strongly corrosive electrolytes
Seawater electrolysis	KERAMOX® Titanium anode Titanium with a Ruthenium Mixed Metal Oxide coating Titanium with a Platinum-Iridium Oxide coating	Depending on amongst others temperature and salinity
Electroplating	Titanium with an Iridium Mixed Metal Oxide coating Platinised Titanium	In highly acidic environments such as: Electro galvanising (zinc plating) Anodising of Aluminium Chromium, Nickel,Tin, etc. plating Precious metal plating Reverse pulse Copper plating Hard Chromium plating Precious metal plating
Water treatment	Platinised Titanium Titanium with an Iridium Mixed Metal Oxide coating Boron-Doped-Diamond anodes	Electro dialysis with polarity reversal Recovery of metals Oxidation and break-down of organic contaminations Higher overpotentials,amongst others for disinfection
Hypo chlorite & Disinfection	Titanium with a Ruthenium Mixed Metal Oxide coating Titanium with an Iridium Mixed Metal Oxide coating Titanium with a Platinum-Iridium Oxide coating	Depending on salinity, polarity reversal and current density
Synthesis reactions	Platinised Titanium Titanium with an Iridium Mixed Metal Oxide coating Boron-Doped-Diamond anodes	Depending on the particular reaction At higher overpotentials
Hydrogen production	Nickel electrodes with a precious metal coating	Coating process by means of exchange plating The purpose is to decrease the overpotentials
