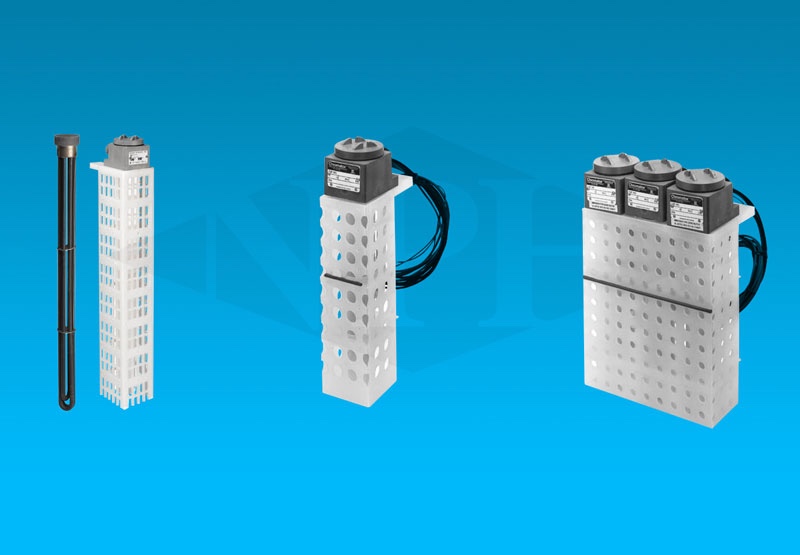

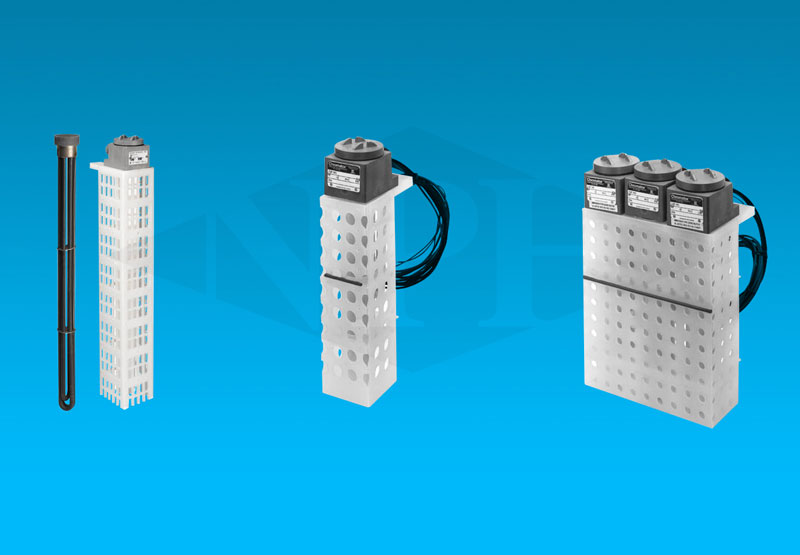

Quartz Immersion Heaters & Teflon (PTFE) Tank Heaters

Spec:
Scope:
Availability: 2021 - 05 - 12
Describe:
Explain:
Quartz Immersion Heaters & Teflon (PTFE) Tank Heaters WATTSVOLTSHotzoneIN./MMOverallIN./MMModel No.With GuardShip Wt.LBS/Kg.5001202406(153)12(305)QMP.5112QMP.52129(4)10001202406(153)12(305)QMP1112QMP121210(4.5)10001202407(180)17(430)QMP1117QMP121711(5)200024048012(305)18(457)QMP2217QMP241711(5)200024048012(305)23(585)QMP2223QMP242314(6.5)300024048018(457)24(610)QMP3224QMP342414(6.5)300024048018(457)29(735)QMP3229QMP342917(8)350024048021(535)29(735)QMP3.5229QMP3.542917(8)400024048028(710)35(890)QMP4235QMP443520(9)400024048028(710)41(1040)QMP4241QMP444123(10.5)500024048033(840)41(1040)QMP5241QMP544123(10.5)500024048033(840)47(1195)QMP5247QMP544726(12)600024048039(990)47(1195)QMP6247QMP644726(12)600024048039(990)52(1320)QMP6247QMP644729(13)800024048049(1245)59(1500)QMP8259QMP845931(1...
  • Features


Quartz Immersion Heaters & Teflon (PTFE) Tank Heaters


 Quartz Immersion Heaters & Teflon (PTFE) Tank Heaters


WATTS

VOLTS

Hotzone

IN./MM

Overall

IN./MM

Model No.

With Guard

Ship Wt.

LBS/Kg.

500

120

240

6(153)

12(305)

QMP.5112

QMP.5212

9

(4)

1000

120

240

6(153)

12(305)

QMP1112

QMP1212

10

(4.5)

1000

120

240

7(180)

17(430)

QMP1117

QMP1217

11

(5)

2000

240

480

12(305)

18(457)

QMP2217

QMP2417

11

(5)

2000

240

480

12(305)

23(585)

QMP2223

QMP2423

14

(6.5)

3000

240

480

18(457)

24(610)

QMP3224

QMP3424

14

(6.5)

3000

240

480

18(457)

29(735)

QMP3229

QMP3429

17

(8)

3500

240

480

21(535)

29(735)

QMP3.5229

QMP3.5429

17

(8)

4000

240

480

28(710)

35(890)

QMP4235

QMP4435

20

(9)

4000

240

480

28(710)

41(1040)

QMP4241

QMP4441

23

(10.5)

5000

240

480

33(840)

41(1040)

QMP5241

QMP5441

23

(10.5)

5000

240

480

33(840)

47(1195)

QMP5247

QMP5447

26

(12)

6000

240

480

39(990)

47(1195)

QMP6247

QMP6447

26

(12)

6000

240

480

39(990)

52(1320)

QMP6247

QMP6447

29

(13)

8000

240

480

49(1245)

59(1500)

QMP8259

QMP8459

31

(14)

10000

240

480

62(1575)

71(1800)

QMP10271

QMP10471

34

(15.5)


Quartz immersion heaters are suitable for most acidic chemistries or solutions. They are composed of metal tubular elements which are encased within a heavy wall quartz outer sheath. Quartz chemical over the side heaters are suitable for all acid solutions except those containing hydrofluoric or fluorides. Their standard watt density is around 40 W/sq. in. for mild acids. Low watt density quartz over the side immersion heaters of 20 watts/sq. in. is recommended for heat sensitive or heavy acid solutions such as for nickel plating, electro-polishing or phosphoric acid. NOT recommended for alkaline or caustic solutions. They are available in single tube or three tube heater units which include a preset over temperature control.

Teflon immersion heaters have a .030 wall of Teflon covering a metal element. This heater has a positive metal ground and superior anti corrosive characteristics that make it ideal for immersion into solutions like HCL, HF, Nitric or Chromic Acid.

Quartz immersion heaters and Teflon immersion heaters over the side construction enable easy installation and replacement. Liquid tight terminal covers prevents entry of liquids. Thermostats or high limit thermal fuses are available as options and prevent heater damage due to loss of liquid or low liquid. Titanium immersion heaters are available that are highly corrosive resistant and can withstand harsh chemicals and environments.


Features and Benefits


Superior Chemical Resistance: For use in most aqueous acidic plating solutions and pickling tanks.  Check solution recommendation chart or with your chemical supplier for proper sheath material selection.


Materials of Construction: Heavy wall quartz sheath with replaceable metal element and polypropylene guards (complete assembly).


Outstanding Performance: Watt densities of 25 watts per square inch (4 w/cm2) ensure long service life.


Corrosion resistant Head: Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.
