![Heating Temperature Controller System]( "Heating Temperature Controller System")
Characteristic：

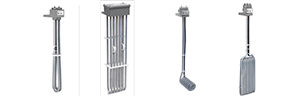

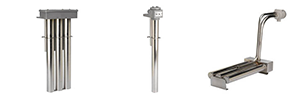

Heating Temperature Controller SystemThe cables and sensors of theheating systems are inserted intothe control cabinet via cable glandssituated at its base and are tightlywired at the clamping strips. Atemperature probe with a Pt 100sensor element must be connectedfor temperature control; a MTSufloating switch or alternatively aconductive NS 2 level rod probemust be connected for fluid levelmeasurement.A floating switch with an integratedtemperature probe (MTSt) or a level rod probe with an integrated temperature probe (NT 2) can ofcourse be connected in place of indi-vidual sensors. The connection of aseparate temperature probe is in thiscase not necessary.Unused cable seals are closed withblind plugs.When connecting single-phaseimmersion heaters use safety im-mersion heaters with an anti-burnsystem to improve the safety of thewhole system. These immersionheaters have a temperature moni-tor built-in at their heating insert,which safely disconnects them atinadmissibly high im...
Characteristic：
Pulse Reverse power supplies, Cabinet modelsCooling: Water cooledOutput power: max. 64000 WattsEffective - and DC-current: max. 4240 APulse current: max. 9600 AEffective voltage: max. 6 VOutput power: max. 2 x 16000 Watts (max. 4 x 8000 Watts)Effective - and DC-current: max. 2 x 1060 A (max. 4 x 424 A)Reverse-current: max. 2 x 2400 A (max. 4 x 960 A)Effective voltage: Standard 2 x 6 V (4 x 6 V), other voltages on request (up to 600V)Typical applications:PCB lines Characteristic valuesSwitch mode technologyDual output, 4-fold output (single output optional) (see below matrix)Linearity inaccuracy Ripple less than Complex waveformsConstant current regulation (voltage regulation on request)SPI interface for control unit pe8005Fast rise and fall times (rectangular waveforms)Permanent short circuit and open circuit proofMicroprocessor controlled regulationMains supply: standard 380 V - 460 V/3~ +/- 10 % / 50-60 HzOptional: 200 V - 240 V/3~ +/- 10 % / 50-60 HzMax. e...
![Ruthenium Iridium Titanium Anodes]( "Ruthenium Iridium Titanium Anodes")
Characteristic：

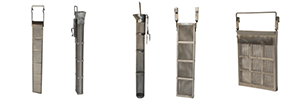

Ruthenium Iridium Titanium AnodesBecause of a very flexible production facility, we are able to manufacture anodes of all types: sheet, plate, mesh, wire, rod, tubular or combinations and/or assemblies of these materials. Their size and number vary from several cm2 to 2 m2 and from 1 to 10,000 pieces. The process in which the anodes are used determines size, shape and coating specification of an anode.Important parameters determining the anode design are:◆ The electrochemical cell or installation wherein the anodes are used◆ The process conditions, such as electrolyte composition, temperature, current density, design life, etc.◆ Mechanical load of the anode◆ Capacity of electrical conductivity of the base material.All anodes are produced according to customer specifications. When these specifications are not yet completely determined, our engineers are pleased to use their knowledge and experience to finalise the design together with the customer.Main application areasAnodes and coatin...
